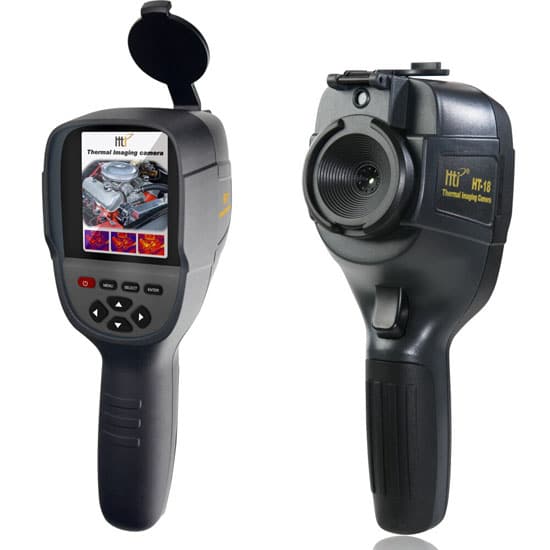

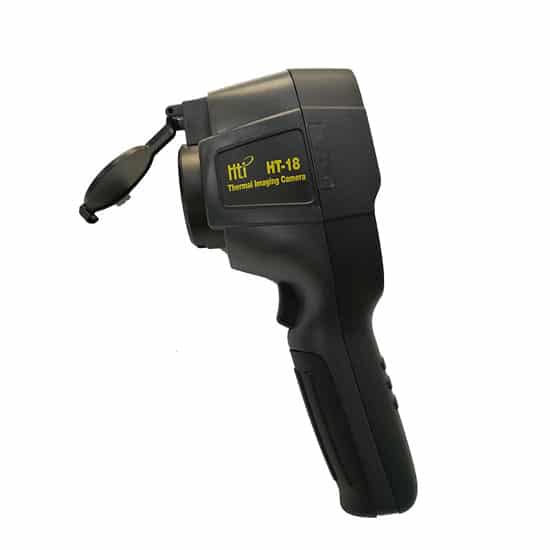

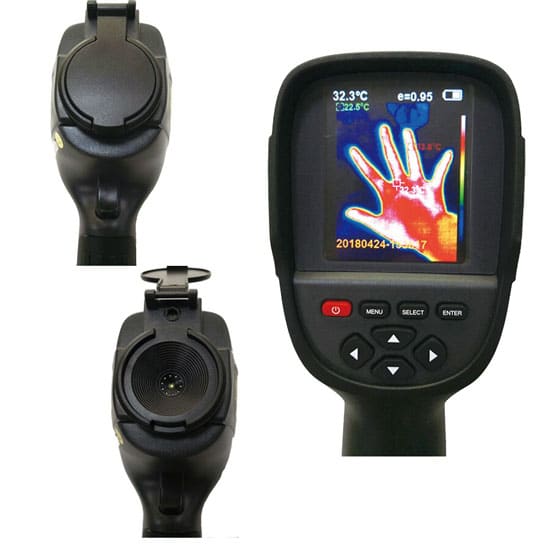

HT-18+ เทอร์โมสแกน Infrared Thermal Imaging Camera ย่านการวัด -20℃-550℃ แม่นยำ ±2.0%

Feature HT-18+

• 3.2” LCD full color screen, allows for detailed showing of infrared generated images;
• 256X192 resolution and 0.3 million pixel visible image resolution, high definition of images;
• -20~550°C temperature measurement range, 2.0°C accuracy for better operation;
• 5 kinds of palette for choice: rainbow, iron red, cold color, black & white and white & black
• Automatic setting: 5 mintues/20 minutes/ not power off automatically
• Built-in 4GB SD card for storage, the pics can be also transferred to television, computer or other devices for checking
• Wide application at medical, fire-fighting, archaeology, traffic, farming, electronic manufacture and other fields
• Separate button for specific function, which is quite easy for you to turn it on or off, delete or check pictures;
• Mini and portable for 90×105×223mm size and 289g weight, attached pouch allows for more convenient carrying
• Ergonomic handle, which can be used and held comfortably

Specifications HT-18+

• Display screen : 3.2” full-color screen
• Infrared image resolution : 256X192
• Visible image resolution : 0.3 million pixel
• Thermal sensitivity : 0.07°
• Temperature measurement range : -20~550°C
• Measurement precision : ±2.0°C or ±2.0%
• Wavelength coverage : 8-14um
• Field angle/shortest focus length : 27°×35°/0.5m
• Emissivity : Adjustable from 0.1 to 10.0
• Focus mode : Fixed
• Image capture frequency : 8Hz
• View option : full infrared and full vision Visible image with 25% step length
• Storage medium : built-in 4G
• Image format : JPG
• Power supply : built-in chargeable 18650 batteries
• USB : Micro USB2.0
• Automatic power-off time : 5 mintues /20 minutes/ not power off automatically
• Size : 90×105×223mm
• Weight : 289g

PDF Catalog
