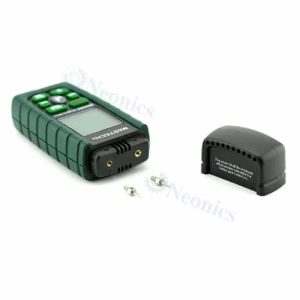

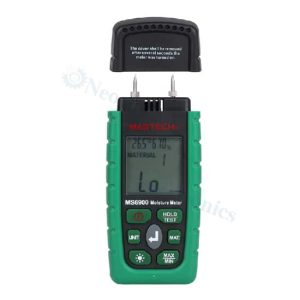

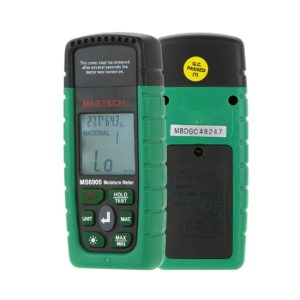

MS6900 เครื่องวัดความชื้นไม้ ซีเมนซ์ คอนกรีต Wood Concrete Moisture Meter Mastech

รายละเอียด Mastech MS6900

• Provide temperature, humidity and moisture measuring
• Measure seven kinds of materials through manual mode
• Maximum and minimum values inquiry function
• Moisture measurement hold function
• LCD Display, moisture bar display
• Units switch
• Backlight display
• Battery low voltage display
• Auto power off after 10 minutes without no key pressed

Specification MS6900

Technology specifications

• Electric Conductivity (Resistance Sensor) Range : 0.0~60.0%;
• Temperature (Temperature Sensor) Range : -10.0~50.0°C (14.0~122.0°F)

Units Measurement

• Material Moisture : %
• Environment Humidity : %,WB,TD
• Environment Temperature : C, F

Materials Moisture Range

• Material 1 : Beech, Spruce, Larch, Birch, Cherry, Walnut 8.5~60.0%
• Material 2 : Oak, Cedar, Maple, Ash Tree, Citigroup, Tamarisk 6.8~53.4%
• Material 3 : Smoothing Cement, Concrete 0.9~24.5%
• Material 4 : Anhydrite Screed 0.0~12.2%
• Material 5 : Cement Mortar 0.7~9.2%
• Material 6 : Lime Mortar, Plaster 0.5~11.1%
• Material 7 : Brick 0.0~17.8%

Resolution

• Material Moisture : 0.1%
• Temperature : 0.1C,0.1F
• Humidity : 0.1%
• Accuracy (perform under temperature of 25C)
• Conductivity : 2%
• Temperature : 2C
• Humidity : 5%

Sample Interval

• Material Moisture Sample Speed : 240ms ; LCD refresh time: 1.5s
• Temperature Sample Speed : 240ms ; LCD refresh time 1.5s
• Humidity Sample Speed : 240ms ; LCD refresh time 3.5s

General Specification

• Operation Temperature : -10~50C(14~122F )
• Storage Temperature : -40~60C(-40…140F)
• Batteries : 2×1.5V AAA(not include in package)
• Life of Battries : 200 hrs (Backlight off)
• Size : 130×55×29mm
• Weight : 140g
